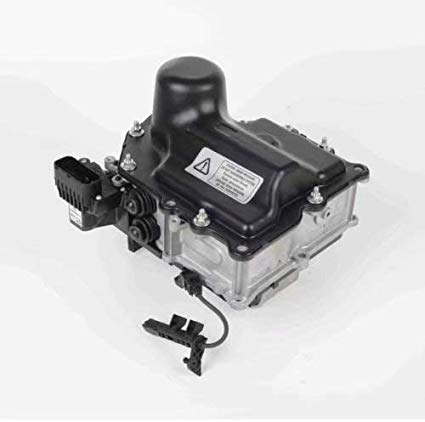

SAP NEW MECHATRONIC GEAR CONTROLLER 0AM325025D -VW 1.2-2.0 TSI 2009-2018

SAP NEW MECHATRONIC GEAR CONTROLLER 0AM325025D -VW 1.2-2.0 TSI 2009-2018

Sale !

RM8,500.00 RM3,875.00

New VW car parts number 0AM325025D  suitable for below car model

We are welcome you to submit your question with your chassis number (VIN)

for confirmation.

Reference OE/OEM

0AM927769D

0AM927769K

0AM927769G

0AM325025D

0AM325025H

0AM325065N

0AM325025J

GEAR CONTROLLER, MECHATRONIC

This VW Golf DSG 7 gearbox controller is a very common failure that affects vehicles built between 2008 and 2015. Failure of this DSG 7 unit will cause a loss of drive and/or failure to change through gears. This will also cause the PRNDS, EML & EPC light to illuminate and the gear symbol to flash on the instrument cluster. You may also notice that the main 30-amp fuse blows causing a complete loss of communication with the gearbox system when performing a diagnostic check. If you are able to communicate with the gearbox system, then you will likely see one or all of the following fault codes stored: “005636 / P1604 – Internal Control Module”, 10902 / P17BF – Hydraulic pump play protection, 16946 / P0562 / 001378 – System Voltage Low & P189C / 006300 – Function restriction due to insufficient pressure build-up.





1 in stock (can be backordered)

SKU: 0AM325025DeSAP Categories: ,

This VW Golf DSG 7 gearbox controller is a very common failure that affects vehicles built between 2008 and 2015. Failure of this DSG 7 unit will cause a loss of drive and/or failure to change through gears. This will also cause the PRNDS, EML & EPC light to illuminate and the gear symbol to flash on the instrument cluster. You may also notice that the main 30-amp fuse blows causing a complete loss of communication with the gearbox system when performing a diagnostic check. If you are able to communicate with the gearbox system, then you will likely see one or all of the following fault codes stored: “005636 / P1604 – Internal Control Module”, 10902 / P17BF – Hydraulic pump play protection, 16946 / P0562 / 001378 – System Voltage Low & P189C / 006300 – Function restriction due to insufficient pressure build-up.

MakeModelYearSub Model
MakeModelYearSub Model
VolkswagenPolo2009 - 20186R
Condition

OE Brand

OE Part Number

, , , , , ,

Part Origin

Product Type

Vehicle Location

Warranty

Weight5 kg
Dimensions35 × 35 × 35 cm
